N-series

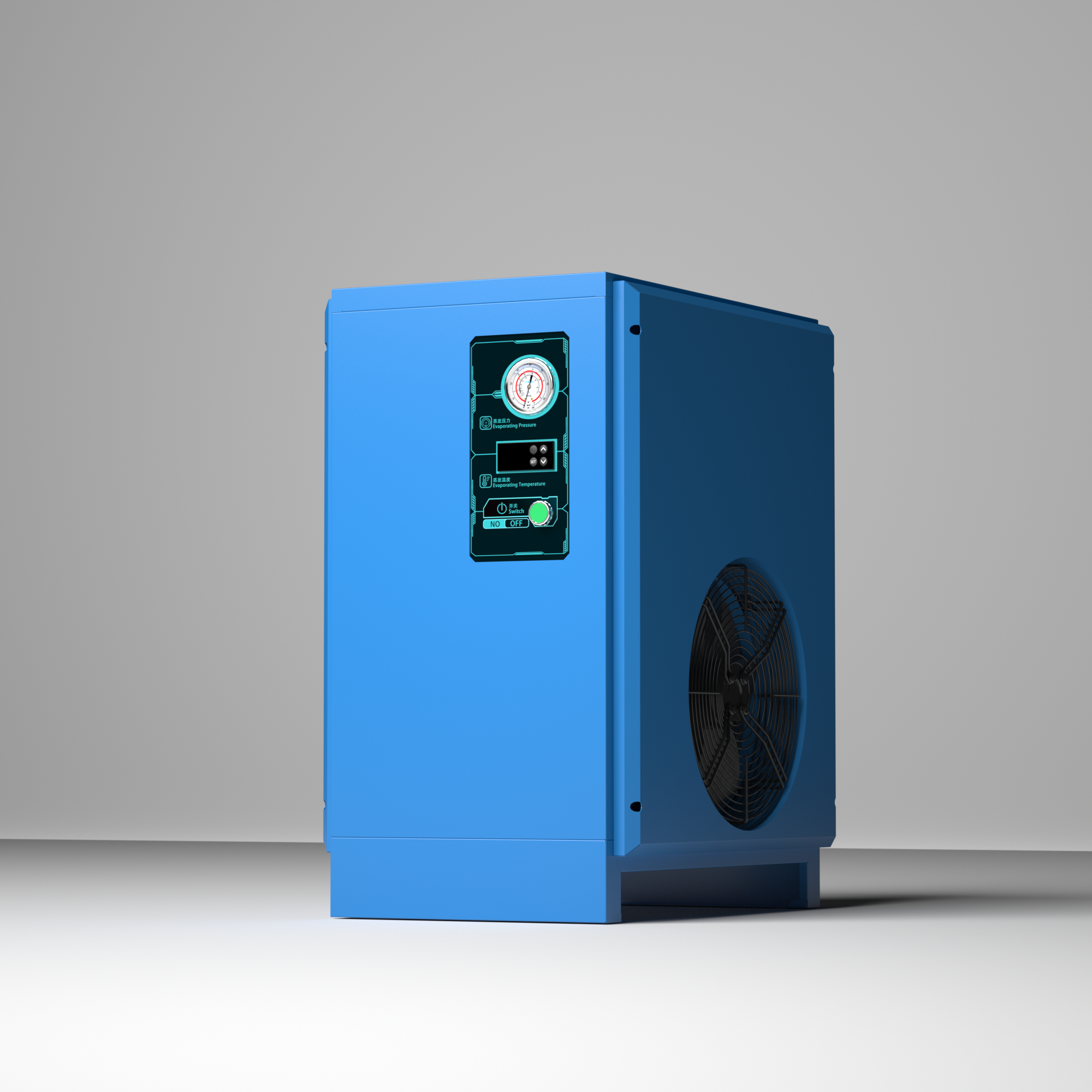

N Series High-Efficiency Shell and Tube Refrigerated Air Dryer

Advantages of N-Series Refrigerated Air Dryers

Key Advantages

• The Jufeng N Series Refrigerated Air Dryer protects your compressed air system by reducing the moisture content through forced cooling.
• The JF Refrigerated Air Dryer adopts an integrated design that combines the pre-cooler, evaporator, and separator, along with a highly efficient plate-fin heat exchanger, ensuring the delivery of an industrial grade drying solution.
• The refrigeration system utilizes a low-energy consumption compressor, an air-cooled condenser, and eco-friendly refrigerants R407C and R410A, making the entire unit energy- efficient and environmentally friendly.

Product Specification

Model	Air flow (Nm³/min)	Pressure (Mpa)	Power Supply	Air Pipe Connection	Refrigerant	Total Power Consumption(kw)	Dimensions (L × W × H) mm	Weight (kg)
N135	13.5	1.3	380VAC-50Hz-3P	G2½"	R410A	3.00	1250x680x1360	216
N150	15.0	1.3	380VAC-50Hz-3P	G2½"	R410A	3.20	1250x680x1360	252
N180	18.0	1.3	380VAC-50Hz-3P	DN80	R410A	4.40	1480x720x1460	280
N220	22.0	1.3	380VAC-50Hz-3P	DN80	R410A	5.00	1480x720x1460	350
N280	28.0	1.3	380VAC-50Hz-3P	DN80	R410A	5.80	1480x720x1460	405
N320	32.0	1.3	380VAC-50Hz-3P	DN80	R410A	7.00	1600x820x1580	407
N380	38.0	1.3	380VAC-50Hz-3P	DN100	R410A	9.34	1600x820x1580	582
N450	45.0	1.3	380VAC-50Hz-3P	DN100	R410A	11.10	2000x1080x1760	601
N500	50.0	1.3	380VAC-50Hz-3P	DN100	R410A	11.90	2000x1080x1760	680
N550	55.0	1.3	380VAC-50Hz-3P	DN125	R410A	12.50	2000x1080x1760	720
N600	60.0	1.3	380VAC-50Hz-3P	DN125	R410A	14.50	2200x1080x1820	830
N650	65.0	1.3	380VAC-50Hz-3P	DN125	R410A	14.50	2200x1080x1820	860
N800	80.0	1.3	380VAC-50Hz-3P	DN125	R410A	3.20	2400x1280x1820	960

If you have additional production specifications and purity requirements, you can contact our equipment engineers for professional answers and one-on-one customized solutions with the opportunity to receive discounted pricing!
